EZ CAMBER XR BOLTS
EZ CAMBER XR BOLTS
LM81240, LM81250, LM81260, LM81270, LM81280, LM81290, LM81295
EZ CAMBER XR BOLTS

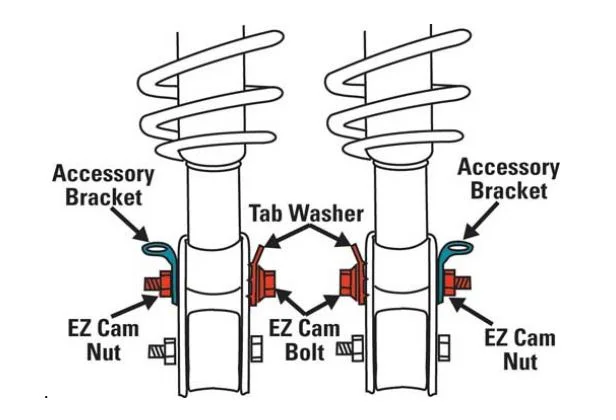

Make a two bolt strut adjustable up to ±1.75° camber with the EZCam. Simply remove the upper bolt, install the EZCam, loosen the lower bolt, and dial in the required change.
• Make camber changes a cost effective, quick one-person job without grinding
• 12.9 grade bolt provides the best clamp load with the highest safety factor in the industry
• Use a Hex Chromate-free finish for 700 hr salt spray results vs the competitors’ ~20 hr, to avoid any hydrogen embrittlement issues, and to be environmentally friendly
• Have markings on the bolt head to show you where the lobe is for easy orientation during adjustment.
LM81240: 10mm
LM81250: 12mm
LM81260: 14mm
LM81270: 15mm
LM81280: 16mm
LM81290: 17mm
LM81295: 18mm
The LM81139 Magnetic Camber Gauge is a great companion tool for the EZCam, attach it to the rotor and watch camber change as you roll the cam bolt.

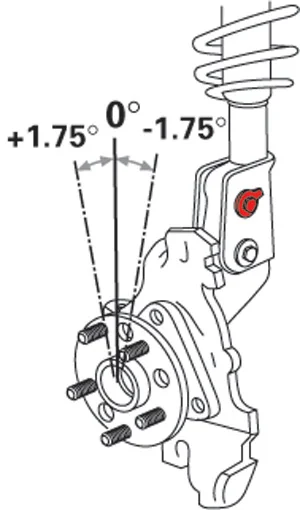

Front Adjustment range: Camber ±1.75°
Installation time: .4 hr/side
Required: 1 kit per axle
Kit includes 2 bolts
Installation Instructions: Here
FAQ: Here
US Patent Nos. 8,544,861 • 8,469,375 • D783,393 • Additional Patents Pending
China Patent No. ZL 201630012294.X
