GM REPLACEMENT FRONT PLATE AND CAM KIT
GM REPLACEMENT FRONT PLATE AND CAM KIT
LM86375, LM86376
GM REPLACEMENT FRONT PLATE AND CAM

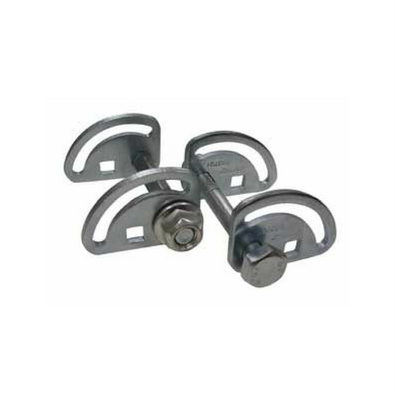

LM86375: GM TRUCK CAMBER/CASTER CAM KIT
This kit replaces the GM OE upper control arm bolt and cams for camber and caster adjustment. The LM86375 kit covers GM 1/2, 3/4, and 1 ton truck applications. Fast, simple installation! Kit includes 2.
Front Adjustment range: Cam/Cas -1.50° to +1.50°
Installation time: .3 hr/side
Required: 1 kit per wheel
Installation Instructions: Here
Applications
Chevrolet/GMC RWD/4WD: 1999 & Up 1500 & HD Crew Cab; 1999-2010 2500, 3500; 2002-2013 Avalanche 1500, 2500; 2004-2012 Canyon & Colorado 2000 & Up Suburban, Tahoe, Yukon, Yukon XL (1500, 2500)
Hummer AWD: 2002-2009 H2; 2006-2010 H3, H3T
LM86376: HEAVY DUTY - GM TRUCK CAMBER/CASTER CAM KIT
Replace corroded or damaged original equipment alignment cams on GM 2500 and 3500 Heavy Duty trucks and Chevy Colorados with this cam and bolt kit. This replacement camber and caster cam kit includes a provision for 3/8" drive ratchet wrench when the bolt head is difficult to reach. Use part number LM86326 HD GM alignment pins to replace the often abused or missing OE pins.
Front Adjustment range: Cam/Cas -1.50° to +1.50°
Installation time: .3 hr/side
Required: 1 kit per wheel
Applications

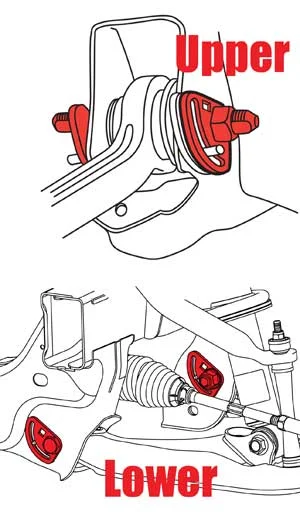

Upper Arm: Chevrolet/GMC RWD/4WD: 2011 & Up 2500HD, 3500HD, 4500
Lower Arm: Chevrolet RWD/4WD: 2015 & Up Colorado
GMC RWD/4WD: 2015 & Up Canyon
