JEEP JK CONTROL ARMS W/ XAXIS

LM13410: Jeep JK Front Adj. Upper Control Arm w/ xAxis

This adjustable direct-fit control arm adds strength, and articulation flexibility to your stock-height or ‘lifted’ Wrangler. It feature SPC’s xAxis™ sealed flex joints to provide bind-free ‘twist’ between the frame and axle during articulation. D.O.M steel construction and forged link provide strength for large tires and aggressive gearing. The dual-threaded adjuster and jam nut makes caster/pinion angle adjustments quick and easy without the need to disconnect the arm or mess with cams and slotted hole knock-outs.

Front Adjustment range: Caster and Pinon +3.0°
Installation time: .5 hr/side
Required: 2 per axle


Installation Instructions: Here


LM13415: Jeep JK Front Lower Control Arm w/ xAxis

This direct-fit, stock-length front lower control arm adds strength and articulation flexibility to your stock-height or ‘lifted’ suspension Wrangler. It features SPC’s xAxis™ sealed flex joint at the axle end to provide bind-free ‘twist’ between the frame and axle during off-road articulation and an OE rubber bushing on the frame end to reduce NVH (Noise Vibration Harshness). D.O.M steel construction provides the strength required for large tires and aggressive gearing.

Front Replacement part
Installation time: .5 hr/side
Required: 2 per axle


Installation Instructions: Here


LM13420: Jeep JK Rear Adj. Upper Control Arm w/ xAxis

This direct-fit rear upper control arm adds strength, on-car adjustability and articulation flexibility to your stock-height or 'lifted' Wrangler. It features SPC's xAxis™ sealed flex joint receiver at the frame end to provide bind-free 'twist' during off-road articulation and an OE rubber bushing on the axle end to reduce NVH (Noise Vibration Harshness). D.O.M steel construction and a forged link provide the strength required for large tires and aggressive gearing. The dual-threaded adjuster and jam nuts make rear pinion angle adjustments quick and easy without the need to disconnect the arm.

Rear Adjustment range: Pinion ±3.0°
Installation time: .5 hr/side
Required: 2 per axle


Installation Instructions: Here

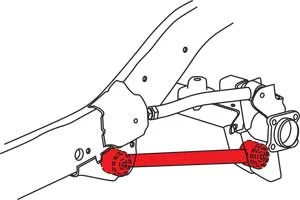

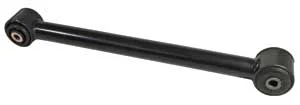

LM13425: Jeep JK Rear Lower Control Arm w/xAxis

This direct-fit, stock-length rear lower control arm adds strength, and articulation flexibility to your stock-height or ‘lifted’ suspension Wrangler. It features SPC’s xAxis™ sealed flex joint and an OE style rubber joint to provide bind-free ‘twist’ between the frame and axle during off-road articulation.


Installation Instructions: Here
